Building the Carquinez Bridge, the First Major Automobile Crossing of San Francisco Bay and One of the World’s Largest Cantilever Bridges, 1927

California Automobile Infrastructure

Photograph

Carquinez Bridge construction photo archive documenting the industrial development of the 1927 cantilever crossing at the Carquinez Strait, a transportation project driven by California’s rapid automobile growth and the mounting inadequacy of the Vallejo ferry connection between the Bay Area and Sacramento. By the early 1920s California vehicle registrations had risen sharply, ferry traffic across the strait had become a bottleneck, and the new span created the first direct highway link between San Francisco and Sacramento when it opened in May 1927. Positioned between the first major wave of California highway investment in the 1910s and the later Freeway Era, the archive records bridge construction as an industrial process, showing how steel members, cranes, temporary decking, marine equipment, and high-angle labor were organized into a permanent transportation crossing. With two main spans of 1100' each, the Carquinez Bridge at the time of its completion was the fourth largest cantilever truss bridge in the world, and the second largest in the United States

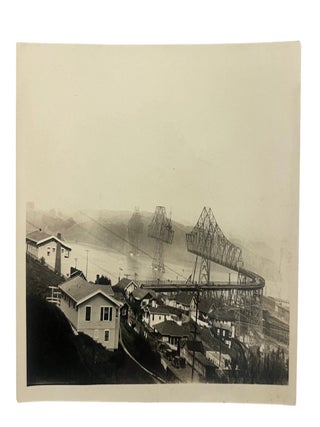

Photo archive of 31 silver gelatin photographs plus 12 photographic negatives, ranging from roughly 3 x 5 to 3.5 x 6 inches, Carquinez Strait, California, circa 1927. Most of the prints focus on the bridge construction process. The 1927 Carquinez Bridge was the first major auto bridge in the San Francisco Bay Area, designed to resist seismic forces with piers extending 135 feet below water, and notes its role as the first direct highway link between Sacramento and San Francisco. Exterior views show the cantilever arms extending out over open water from tall steel towers, with large truss sections still incomplete, the suspended span not yet joined, and the full geometry of the crossing legible at successive phases of erection. Several photographs are taken from elevated ground above shoreline houses and industrial buildings, locating the bridge within a worked waterfront rather than an isolated engineering view. Others are made from water level, where the steel rises directly from the strait and barges, work boats, and temporary supports register the marine logistics required to build in the channel. One close construction view looks straight down a temporary work deck lined with rails or timbers toward cranes and hoisting apparatus embedded inside the growing steel frame. Another shows a group of workers seated and standing on a riveted member before placement, making the relationship between labor and material explicit without shifting the archive away from its central subject, the structure under assembly. Additional prints show falsework, approach grading, industrial shoreline staging, and spectator vantage points from which the nearly completed trusses were watched from land. Versos carry Velox paper marks, oval WEBBS processing stamps dated March 14, 1927 on several prints, and manuscript or stamped inventory numbers. The 12 negatives are secondary material and include unrelated vernacular subjects by the same photographer, among them floodwater, truss bridges, a rifle-range scene, and a few domestic snapshots.

The archive belongs to the period when California road building and bridge construction accelerated to meet automobile traffic that older ferry systems could no longer absorb. In these photographs, infrastructure is not presented as a finished monument but as an active building process, with the visual emphasis placed on staged steel erection, temporary supports, shoreline preparation, marine access, and workers operating within narrow, elevated, material-heavy conditions. Light curling, minor creasing, and scattered discoloration on few, with verso stamps or notations; overall good condition. Archive of photographs showing a necessary piece of California transportation infrastructure being built, with the labor system and material processes documented.

Item #23301

Price: $750.00
